VSDISPLAY 10.1 inch 10.1" 2560X1600 IPS LCD Screen VVX10T025J00 with 2 LCD Controller Board
Product details
| Management number | 209106270 | Release Date | 2026/03/29 | List Price | $39.95 | Model Number | 209106270 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

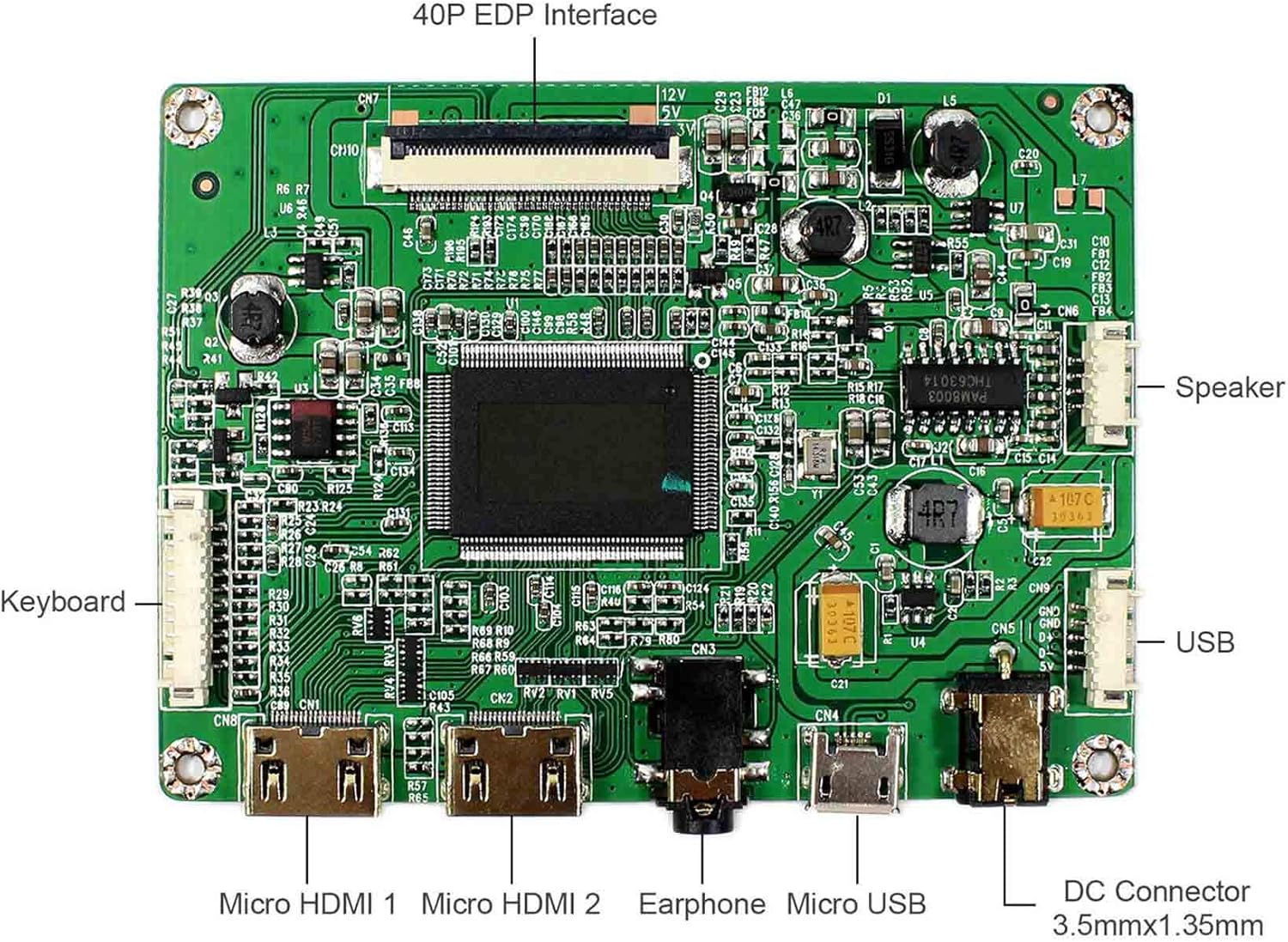

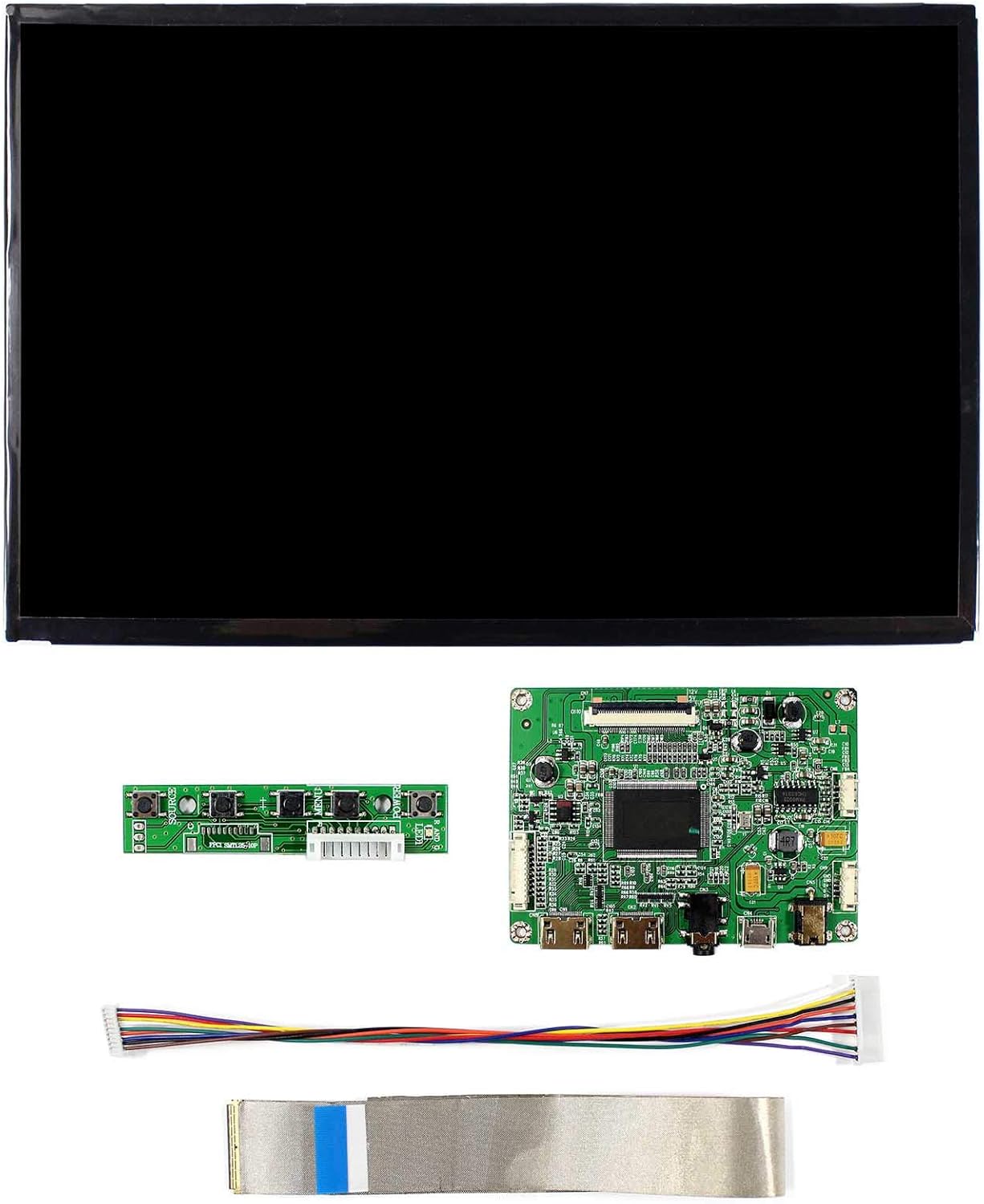

LCD Controller Board: Board Work for 40Pin EDP LCD ScreenInput Power Adapter: 5Vdc-12Vdc More than 2A.Come In Standby Model When Not Input SignalStandby Model <0.3WAudio Input: 2Audio Output: EarphoneOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: EnglishBoard Size: 82mm x 60mm x 5mm10.1" VVX10T025J00 2560X1600 LCD Screen:Display Mode IPS, Normally Black, TransmissiveResolution 2560RGB)×1600Outline Size 229.75 ×151.22×4.6(H×V×D)Display Area 216.96× 135.6 (H×V)Brightness 400 cd/m² (Typ.)Contrast Ratio 1000:1 (Typ.) (TM) Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface eDP (2 Lanes) , 40 pins , ConnectorBacklight WLEDInput Voltage 3.3V (Typ.)Packing list :1× 2 LCD Controller Board VS-RTD2556HM-V21× 10.1inch VVX10T025J00 2560X1600 LCD Screen1× Signal Cable1× Keyboard With CableWhen use DC Connector as input. Power Supply Input Voltage 5Vdc- 12Vdc.Micro USB output 5Vdc 500mA. When use Micro USB as input. Power Supply Input Voltage 5Vdc.When use 5Vdc as input. Power Supply Input current more than 2A.When use 12Vdc as input. Power Supply Input current more than 1A.
- 10.1" VVX10T025J00 2560X1600 LCD Screen: Display Mode IPS, Normally Black, Transmissive Brightness 400 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (TM
- Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
- Signal Interface eDP (2 Lanes) , 40 pins , Connector
- Board Work for 40Pin EDP LCD Screen
- Input Power Adapter: 5Vdc-12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <0.3W
| UPC | 601285644486 |
|---|---|
| Brand | VSDISPLAY |
| Color | Black |
| Brightness | 400 nits |
| Model Name | VVX10T025J00 |
| Resolution | QXGA Wide |
| Screen Size | 10.1 Inches |
| Aspect Ratio | 16:9 |
| Display Type | LCD |
| Manufacturer | VSDISPLAY |
| Model Number | VVX10T025J00 |
| Mounting Type | Panel Mount |
| Screen Finish | Glossy |
| Viewing Angle | 80 Degrees |
| Contrast Ratio | 1000:1 |
| Has Color Screen | Yes |
| Native Resolution | 2560x1600 |
| Display Technology | LCD |
| Hardware Connectivity | Unknown |
| Display Resolution Maximum | 2560 x 1600 |
| Number of Component Outputs | 2 |
