ESP32-S3 1.43inch AMOLED Display Development Board, 466x466 Resolution 16.7M Color QSPI Interface, ESP32 with Capacitive Touch AMOLED Round LCD, Support 2.4 GHz Wi-Fi and BLE 5, with CNC Metal Case
$41.27
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by activecareeducationlms.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$41.27
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by activecareeducationlms.com
Free 30-day returns Details
Product details
| Management number | 209106199 | Release Date | 2026/03/29 | List Price | $16.51 | Model Number | 209106199 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ESP32-S3 1.43inch AMOLED Development Board (with CNC Metal Case), equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna.
- Supports switching to use external antenna via resoldering an onboard resistor. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM.
- Onboard 1.43inch AMOLED display, QSPI interface, 466 × 466 resolution. 178° wide viewing angle. Excellent Display Performance, 16.7M color, wide viewing angle. Supports capacitive touch function controlled via I2C interface, with interrupt support.
- Onboard Multiple Interfaces: Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 R| T| C chip with reserved SH1.0 ba -tte y header (supports charging) for R| T| C function requirement.
- Onboard RST button and programmable BOOT button for easy custom function development. Onboard 3.7V MX1.25 ba -tte y recharge/discharge header. Onboard TF card slot for external TF card storage of pictures or files.

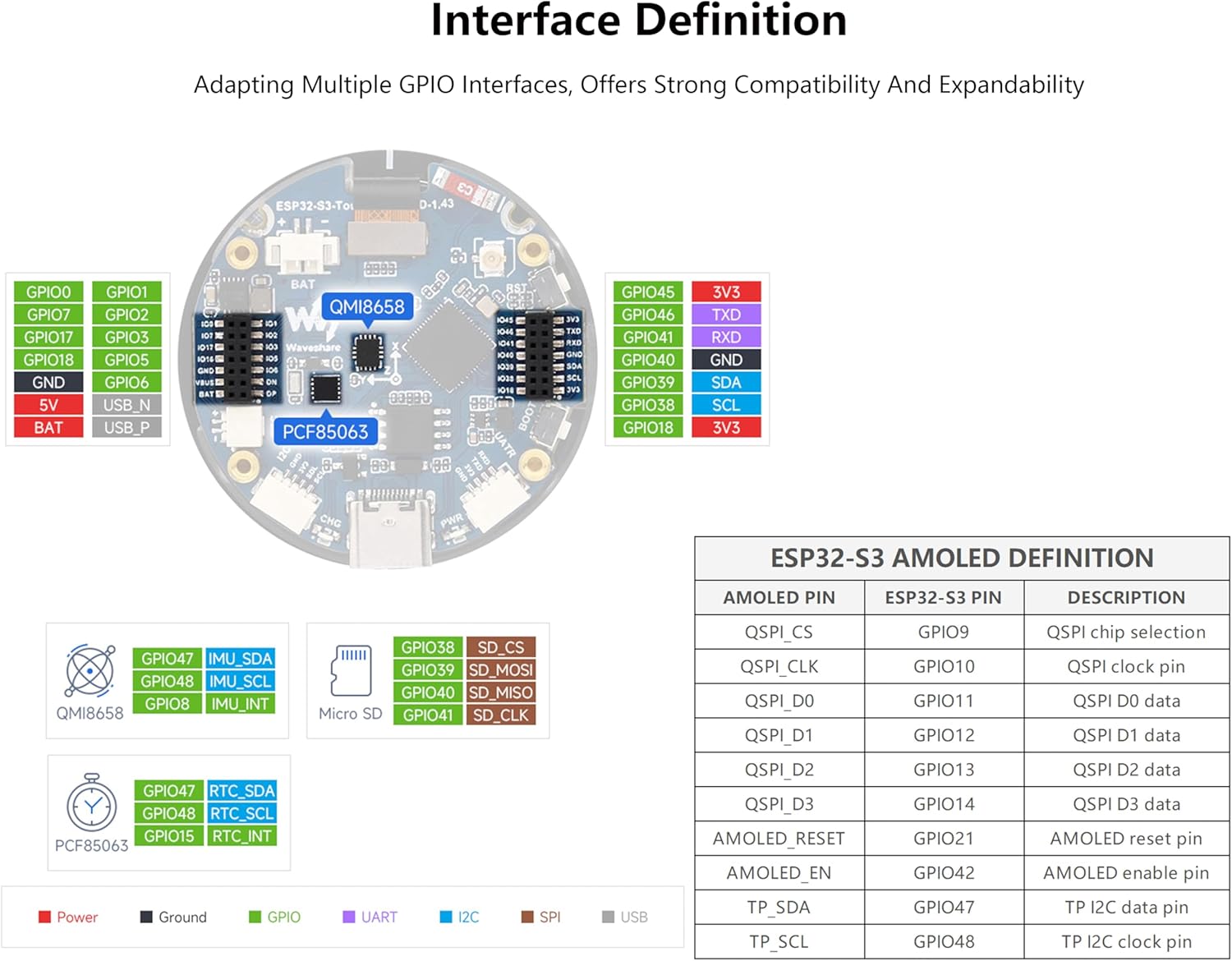

- Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use. Onboard UART and I2C SH1.0 4PIN connector, reserved 2 × 14PIN 1.27mm pitch headers, adapting multiple GPIO interfaces.

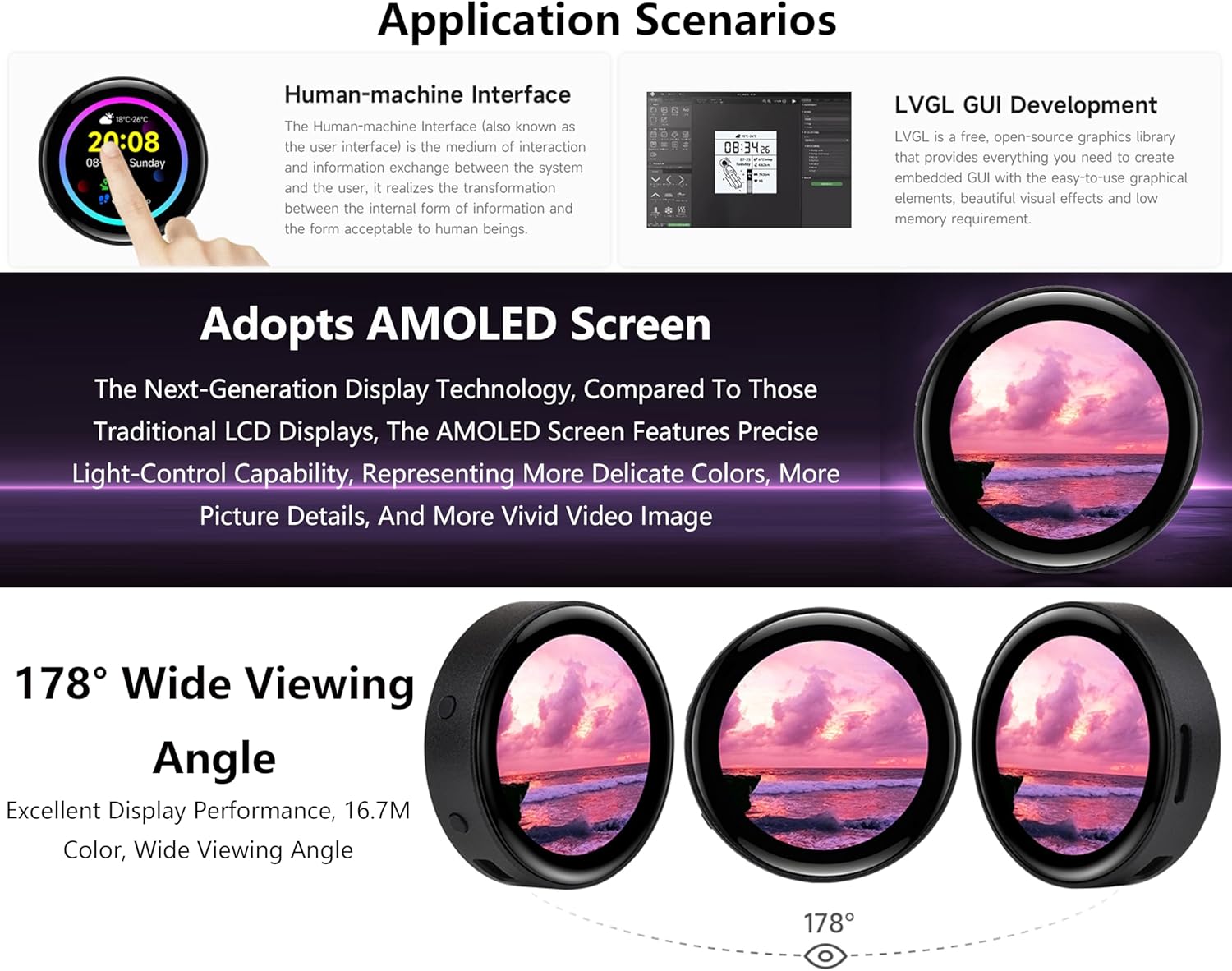

- Adopts AMOLED screen. The next-generation display technology, compared to those traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image.
- Currently provides two development tools and frameworks, Arduino IDE and ESP-IDF, providing flexible development options, you can choose the right development tool according to your project needs and personal habits. Please check: n9.cl/enjbl
| Brand | Wonrabai |
|---|---|
| Screen Size | 1.28240240 |
| Manufacturer | Wonrabai |
| Model Number | ESP32-S3-Touch-AMOLED-1.43-B |

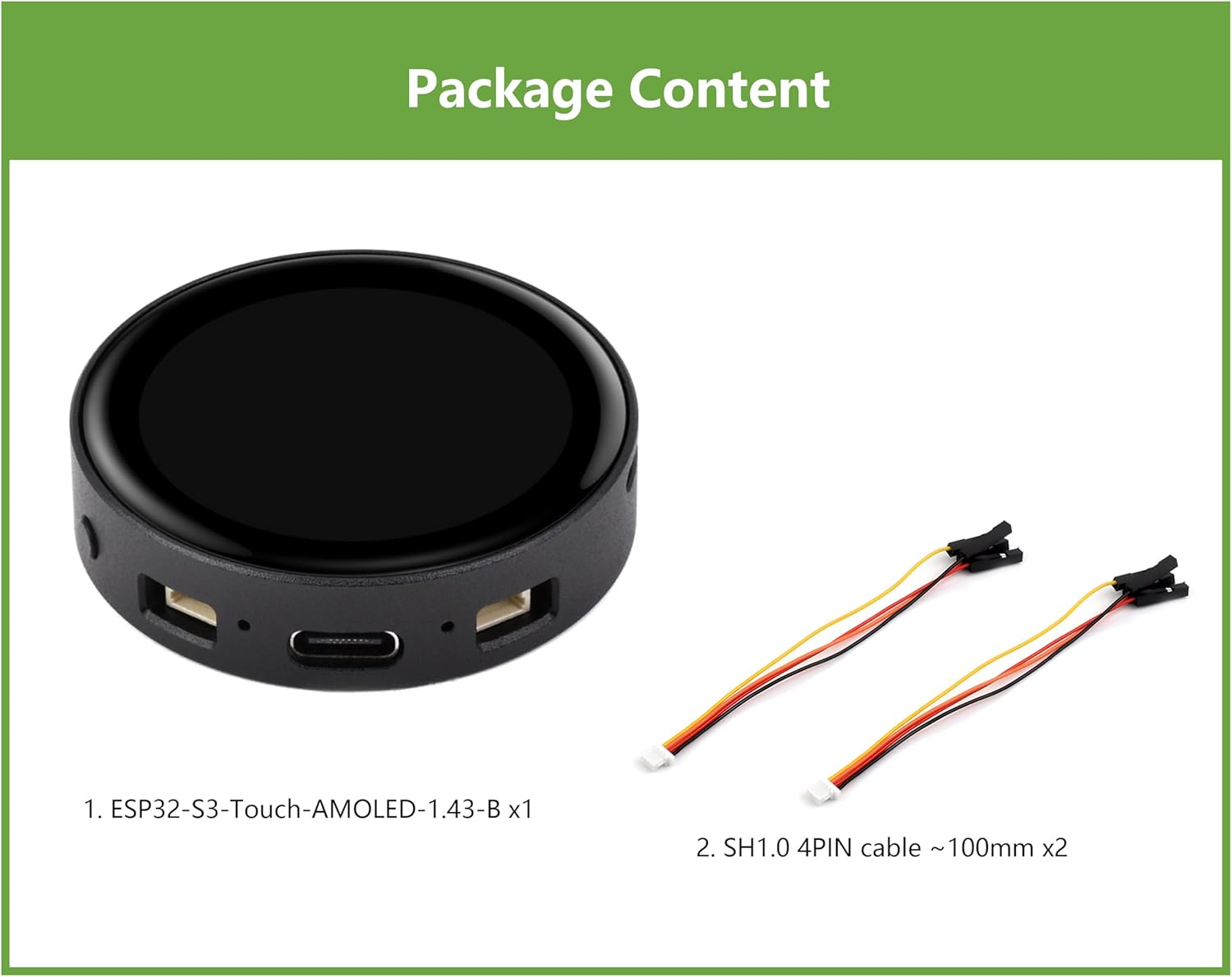

| BuiltIn Media | ESP32-S3-Touch-AMOLED-1.43-B x1, SH1.0 4PIN cable ~100mm x2 |
| Response Time | 5 Milliseconds |
| Warranty Description | Any questions, please let us know. |
